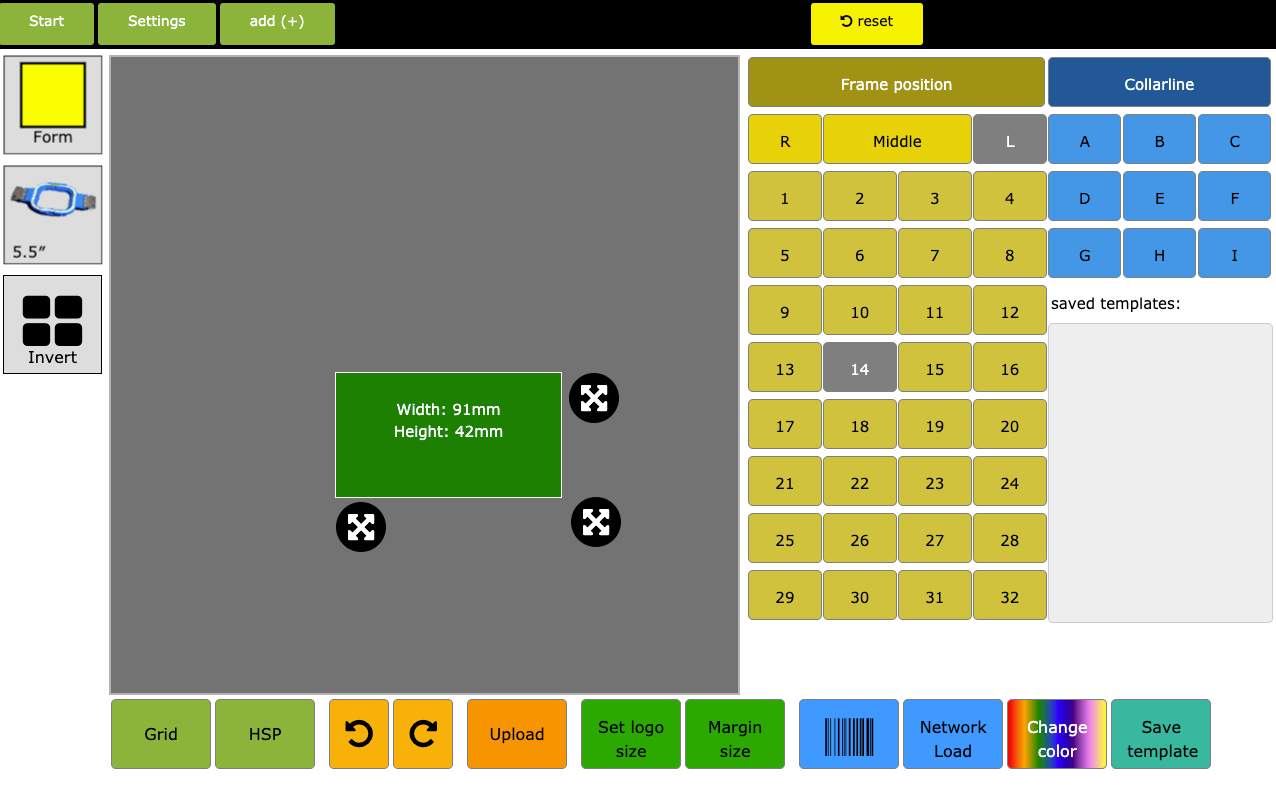

View of the user interface:
| Function | View (projector) | Description | ||
 |
 |

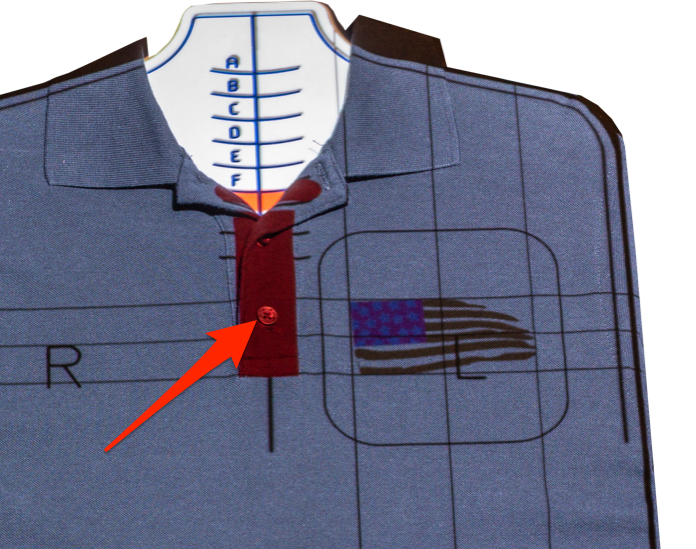

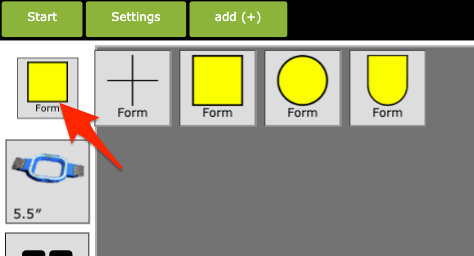

Defines the shape of the object to be visualized. | ||
 |
 |

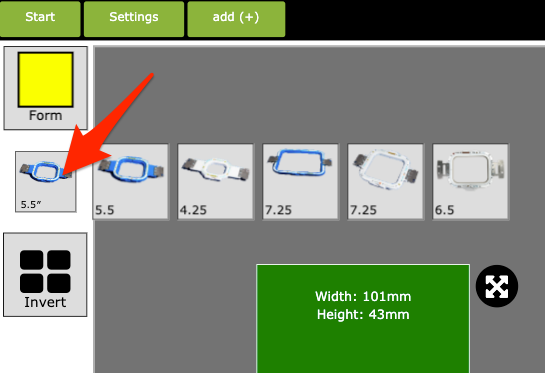

Changes the hoop. | ||
 |
 |

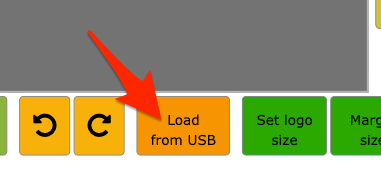

Loads a .DST file from a connected USB stick. | ||
|
|
|

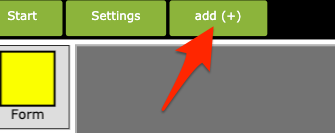

Creates any number of virtual lines. These can be placed freely and changed in size, color and angle. |
||
 |
 |

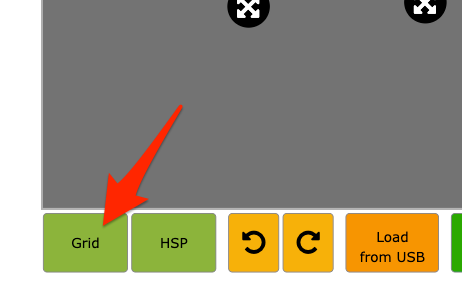

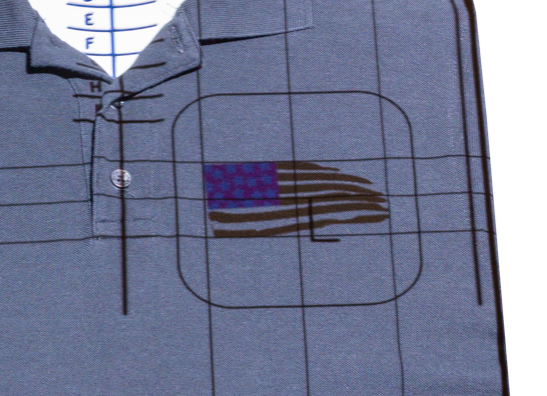

Displays a grid. | ||
 |
 |
|

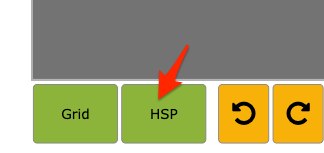

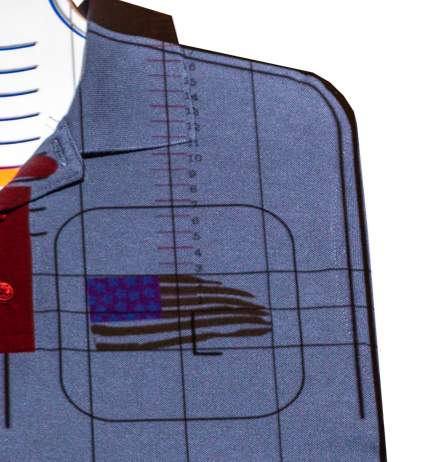

Displays the HSP (neck-shoulder-point) line, this line shows from the center of the logo to a ruler in steps of a half inch.
|
|
 |
 |

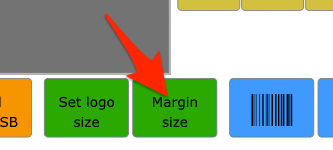

Draws a line around the logo that corresponds to the distance of the specified value. | ||
