Setting up the TouchBox for the HoopStation

The setup of the TouchBox is described in 2 chapters.

Part 1 - Setting up the TouchBox when the HoopStation is connected to the network.

Part 2 - Setting up the TouchBox when the HoopStation is used as
stand-alone is operated without a network.

Part 1- Installation with network:

Requirement:
TouchBox is connected via Ethernet as described in the assembly instructions on page 14.

Start the HoopStation and the TouchBox

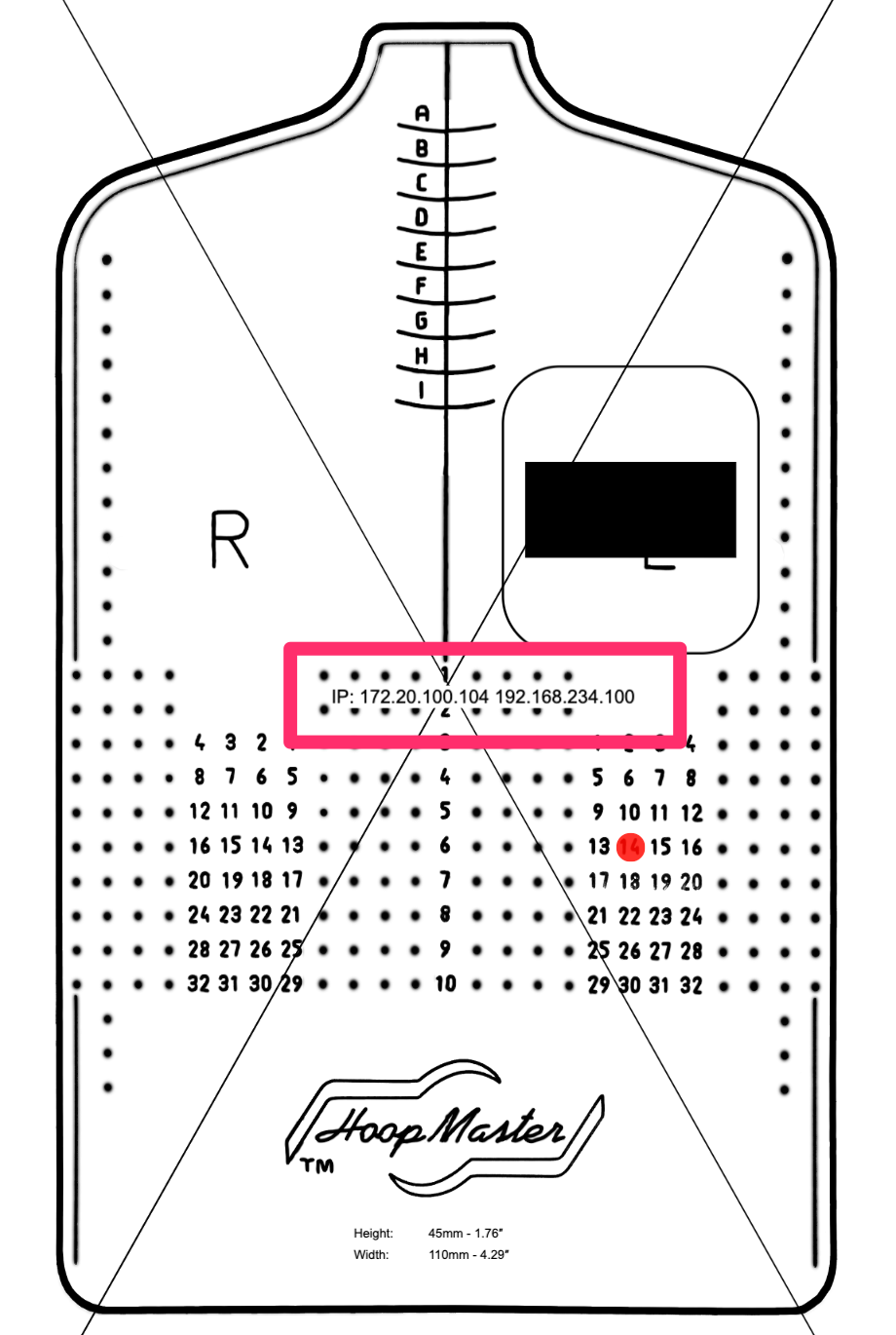

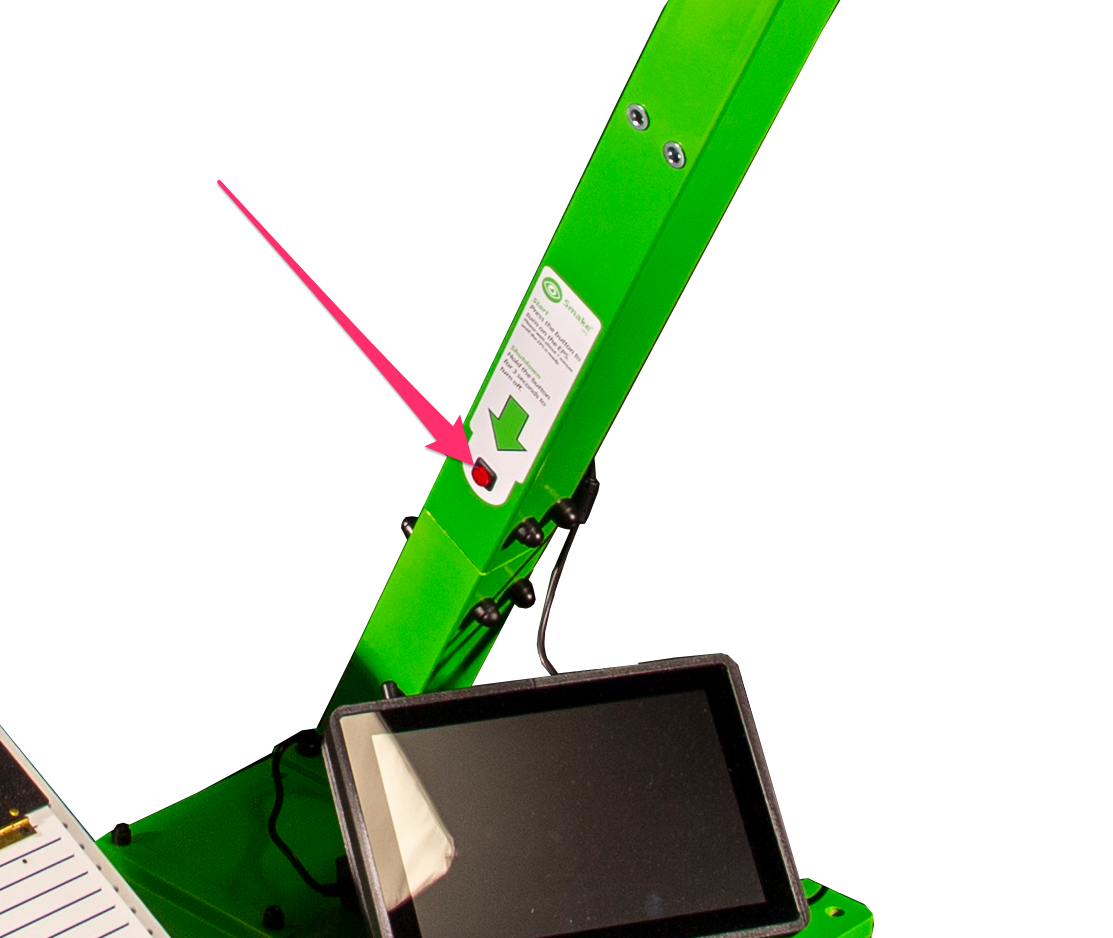

Press the red button on the HoopStation for about 1 second, on the projector you will see your assigned IP address, you need this address to configure the TouchBox.

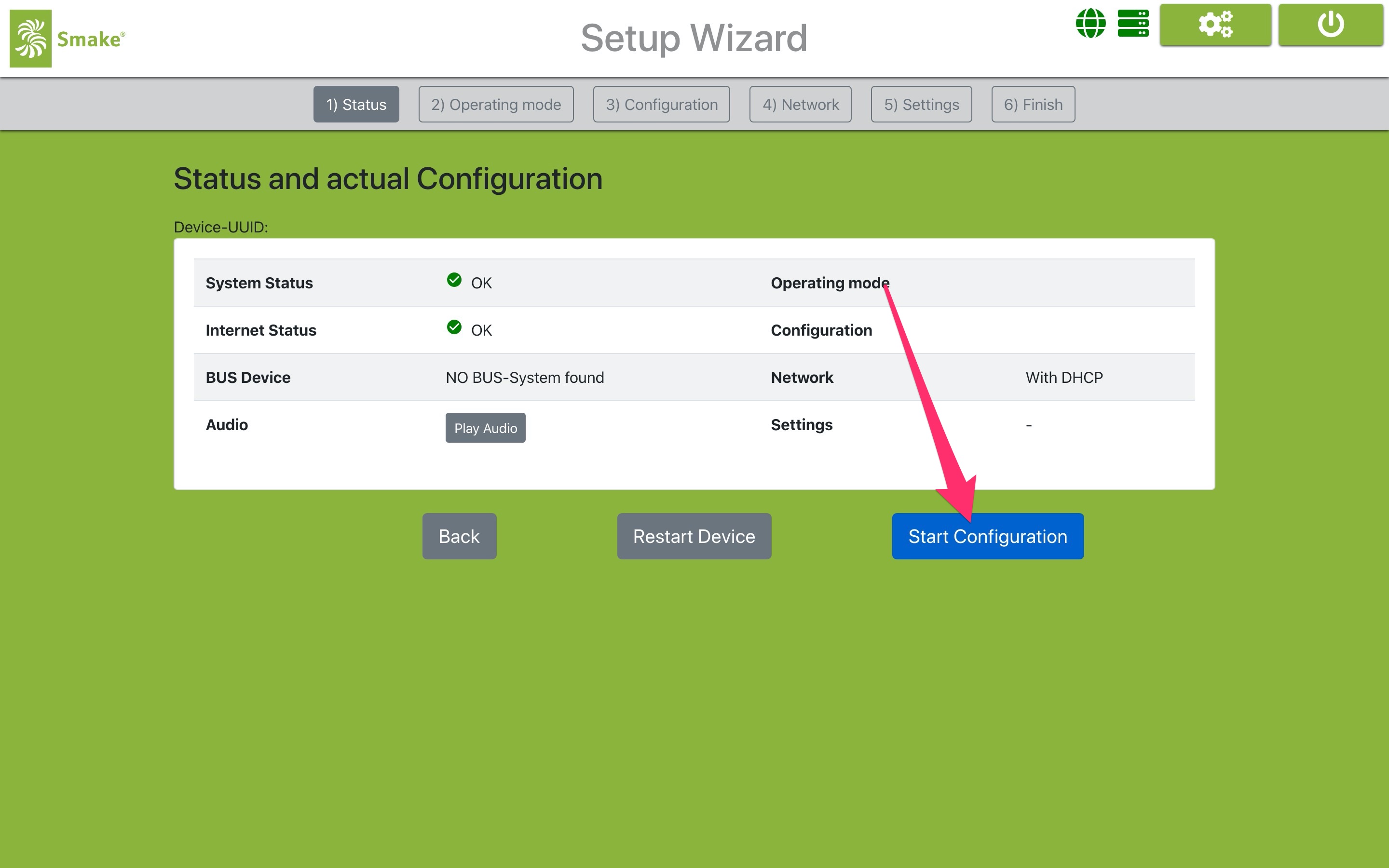

When the TouchBox is booted, start the Configuration.

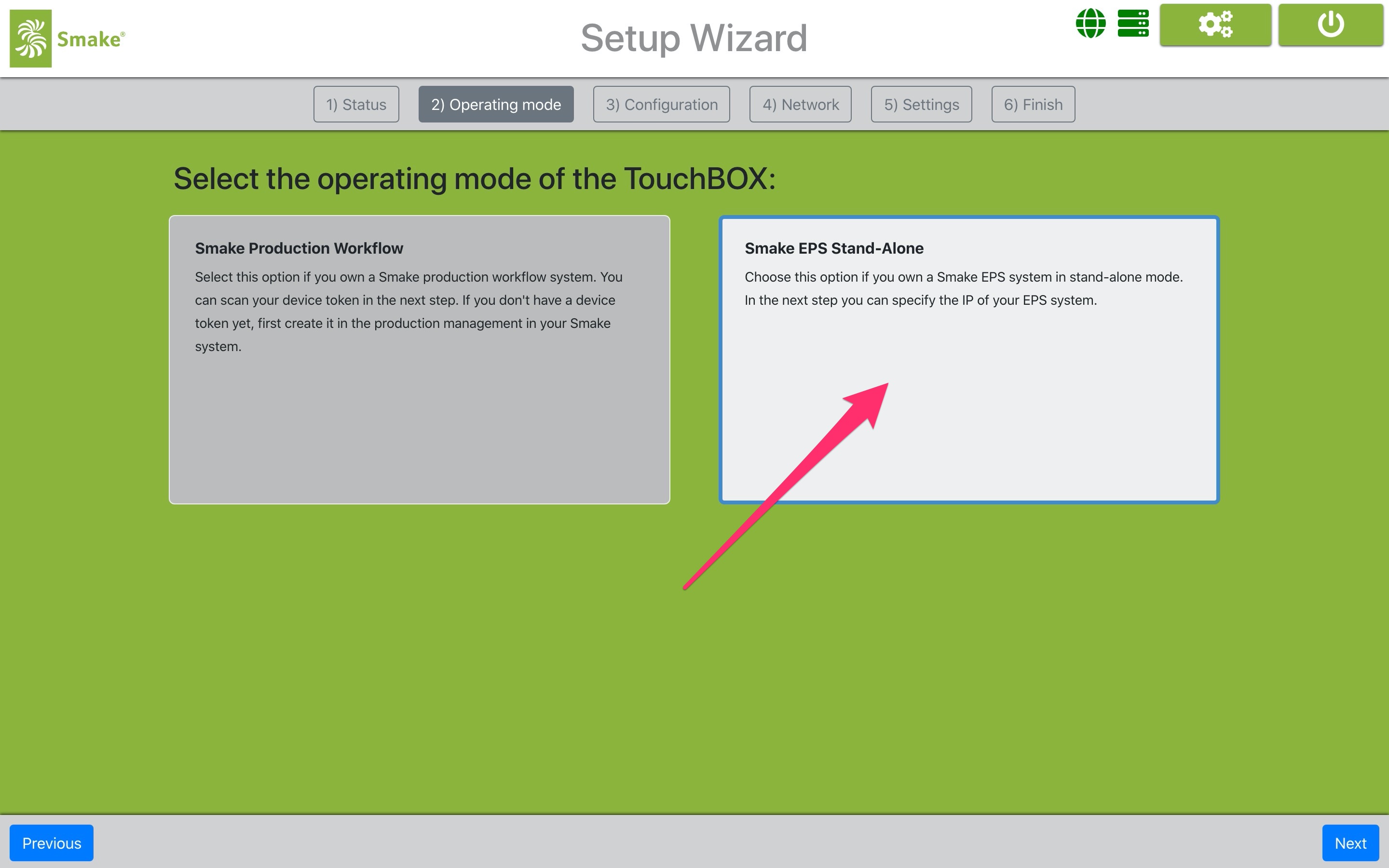

In the next step select the operating mode "Smake EPS Stand-Alone".

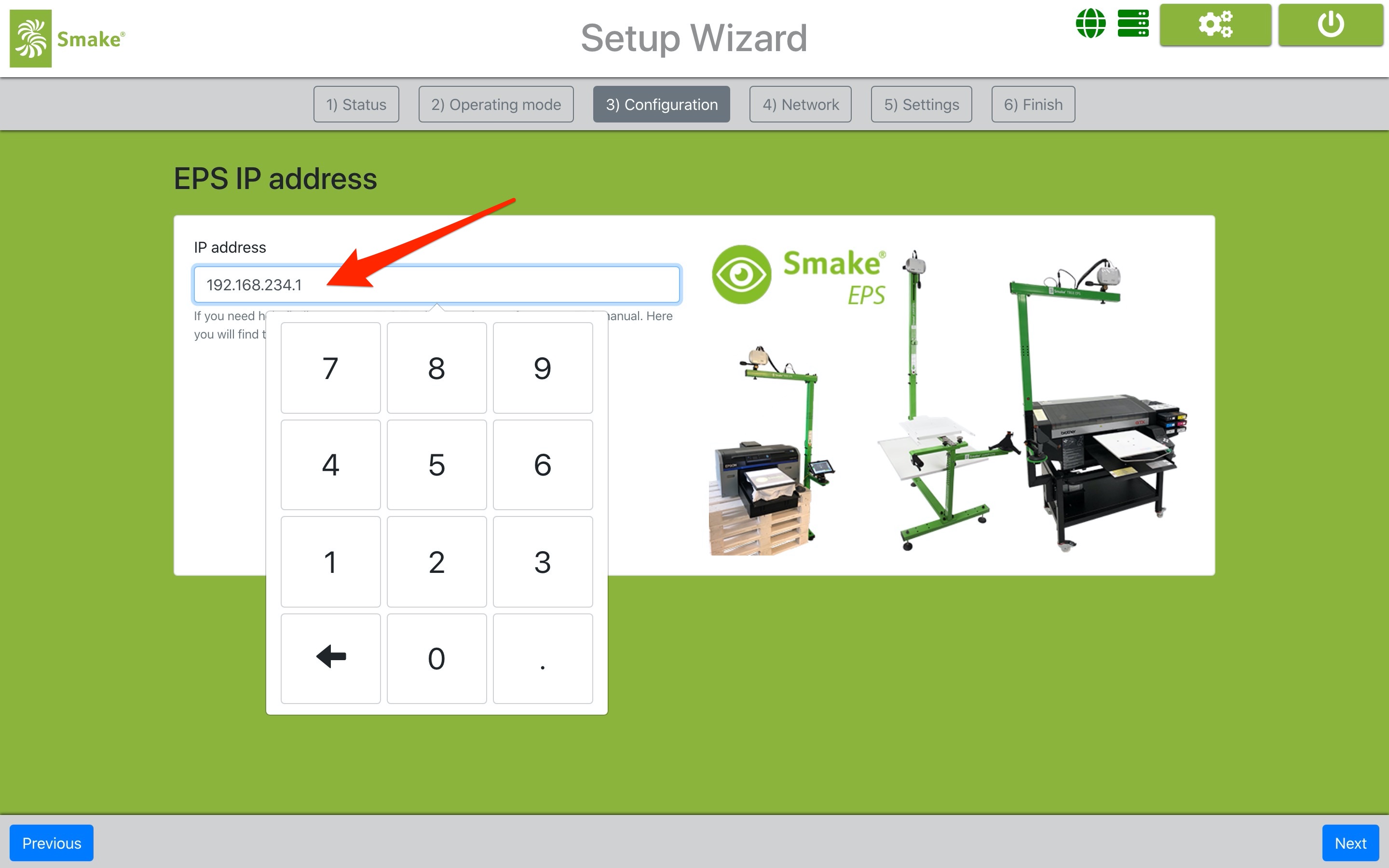

in the next step you enter the IP address of the HoopStation.

In the next step select the configuration with DHCP.

On the last page you will see a summary.

Save the setting, after a restart the HoopStation is ready for use.

Part 2- Setup without network in stand-alone mode.

Start the HoopStation and the TouchBox

When the TouchBox is booted, start the Configuration.

In the next step select the operating mode "Smake EPS Stand-Alone".

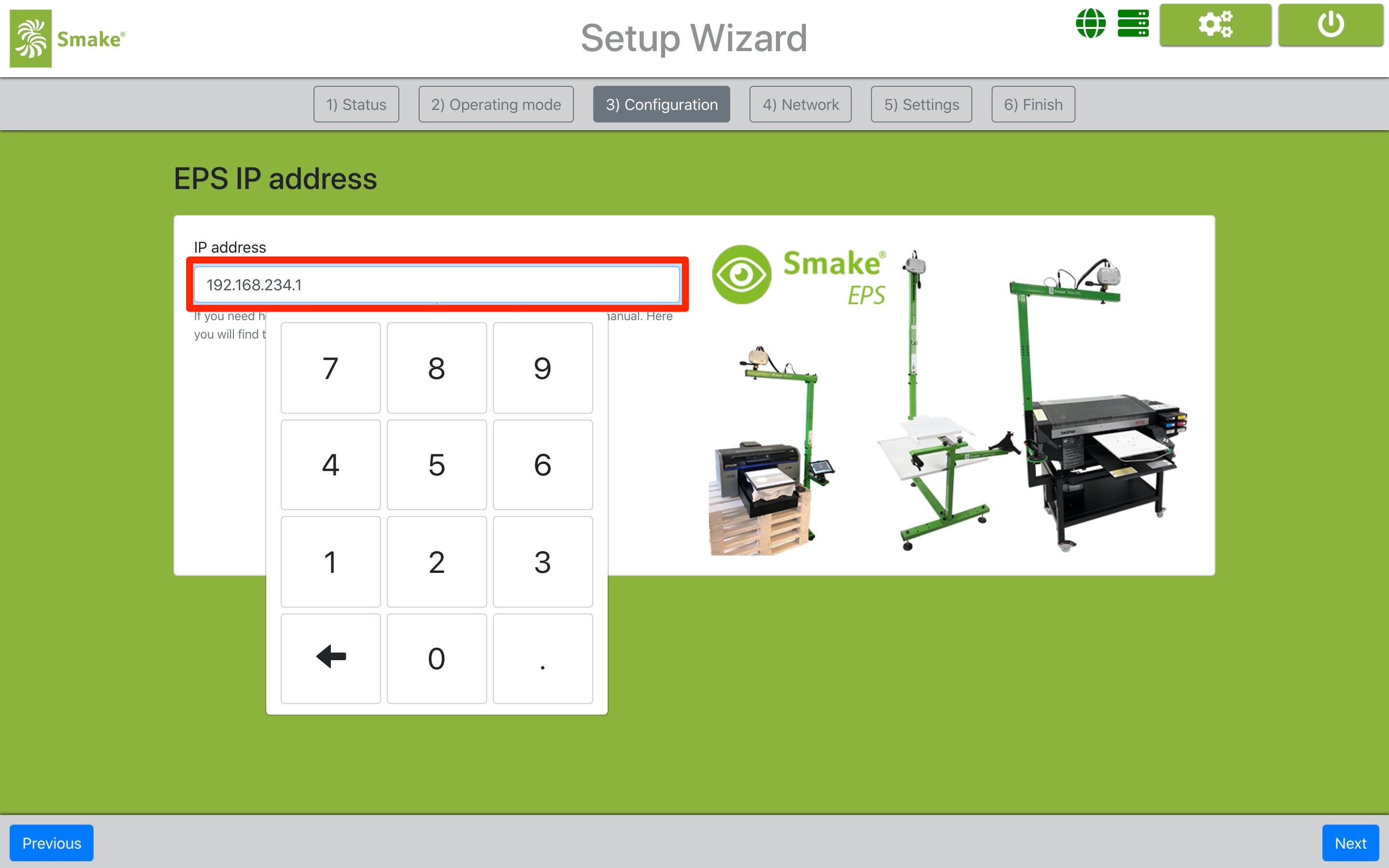

Enter the address 192.168.234.1 as IP address (if not available)

In the next step select the mode "Without DHCP".

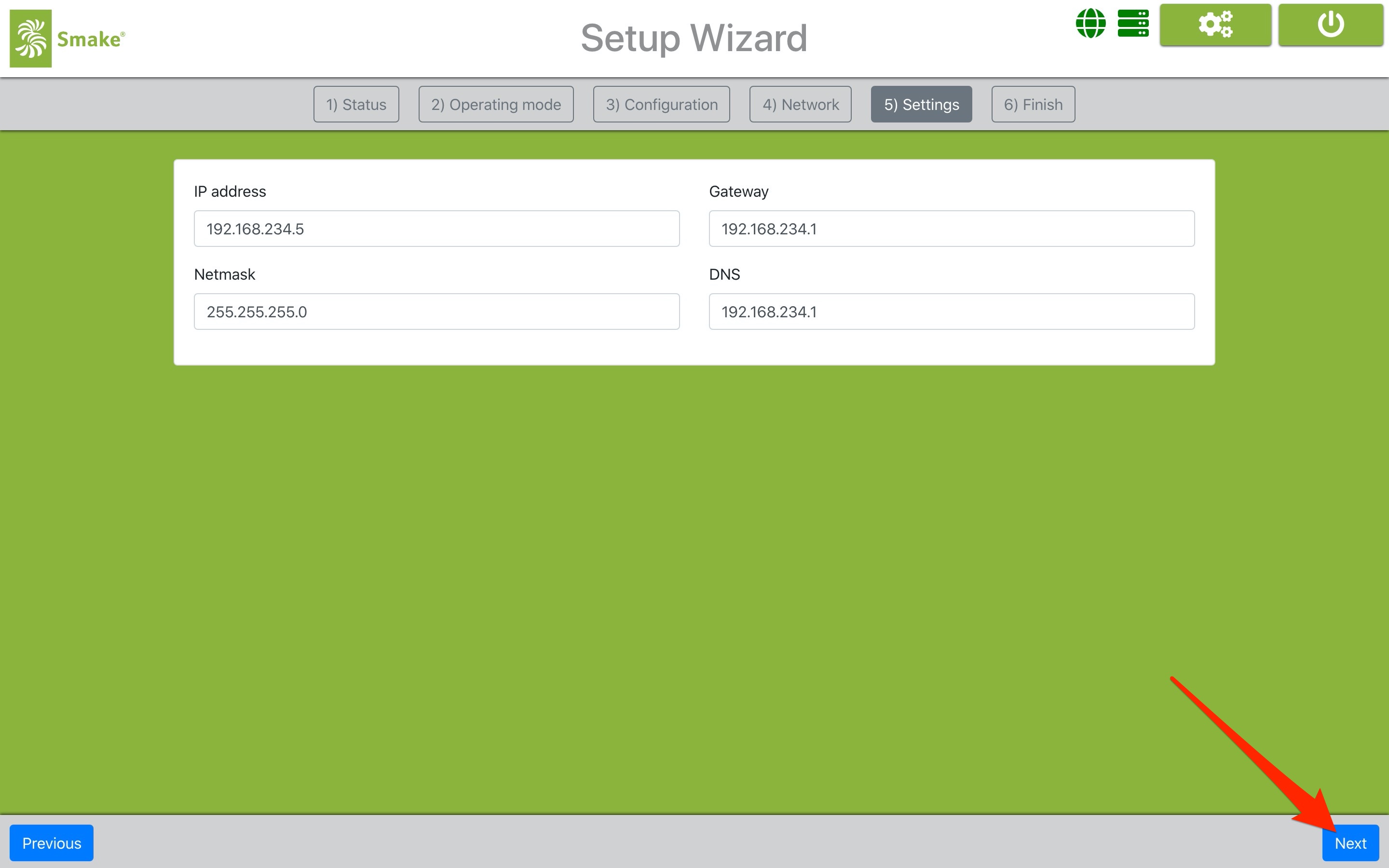

Next you will get an overview of the set addresses.
Compare all addresses with the screenshot again, if all addresses are correct press the header "Next".

On the last page you will see a summary.

  Save the setting, after a restart the HoopStation is ready for use.
